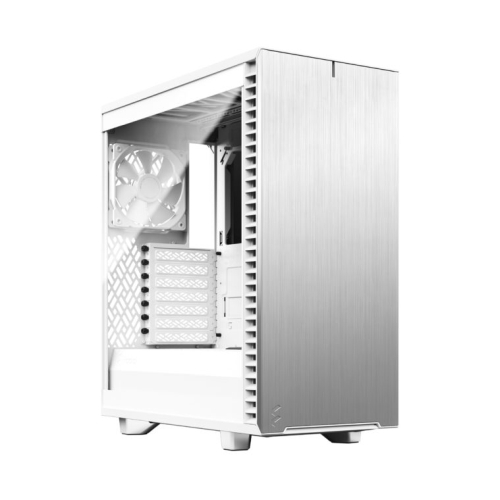

zero-0262-Fractal Design Define 7 Compact

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.


• Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included)
• Top panel effortlessly swaps from solid steel to filtered ventilation
• New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
• Silence-optimized construction with industrial sound-damped front, top, and side panels
• Brushed aluminum front and top-latching side panels offer a clean sophisticated look
• Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)
• Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
• Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
• Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
• Integrated cable guides with Velcro straps further simplify cable management behind the board

The Fractal Design Define 7 Compact (White TG) Gaming Case is the perfect choice for gamers who want a stylish and protective case for their gaming rig. This ATX case comes in a sleek white finish and features a full-length tempered glass side panel that gives an unobstructed view of the interior components. Additionally, it has 2 included fans, sound dampening, and a ventilated PSU shroud, allowing for optimal cooling and airflow. This case also has a USB-C port, making it compatible with the latest generation of motherboards. This case has a total weight of 8.76 kg and dimensions of 427 (L) x 210 (W) x 474 (H) mm, with the width reducing to 415mm when incorporating the screws and protrusions. The Fractal Design Define 7 Compact also has 7 expansion slots and is compatible with graphics cards up to 341 mm in length. Not to mention, the maximum allowable processor cooler height is 169 mm, and the length of the PSU is 200 mm total (165 mm with HDD cage and front fan). For connectivity, the case has 1 USB 3.1 Gen 2 Type-C port, 2 USB 3.0 ports, 2 USB 2.0 ports, audio I/O, power and reset buttons. The included fans are a Dynamic X2 GP-14 140mm at the front, and a Dynamic X2 GP-12 120mm at the rear. As for the additional features, this Fractal Design case also comes with a top panel made of sound-dampened steel and has extra fan mounts on the top and bottom for further cooling requirements. Accessories include an accessory box, user manual, and a ventilated top panel. In addition, the Fractal Design Define 7 Compact is backed by a 2-year warranty. All in all, this case is an excellent choice for gamers, providing both style and efficiency for a great gaming experience.

Description

Specification

• Form Factor: ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "ATX, Micro ATX, Mini ITX"
• #Hide#Window(s): Yes (Window)
• Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
  2 x USB 3.0
  2 x USB 2.0
  Audio I/O
  Power button
  Reset button
• Expansion Slots: 7 Expansion slots
• Cooling System: Included
  Front: 1 x Dynamic X2 GP-14 140mm fan
  Rear: 1 x Dynamic X2 GP-12 120mm fan

  Fan Mounts
  Front: 3 x 120 / 2 x 140 mm
  Top: 2 x 120 / 2 x 140 mm
  Rear: 1 x 120 mm
  Bottom: 1 x 120 mm (requires removal of HDD cage)
• Colour: White
• Material: Left side panel: Tempered Glass
  Right side panel: Industrial sound-damped steel
• Compatability: GFX Card:
  341 mm (360 mm without front fan)

  Max CPU Cooler:
  169 mm

  PSU:
  200 mm total (165 mm w/ HDD cage and front fan)
• Weight/Dimensions: 8.76 kg
  (LxWxH) 427 x 210 x 474 mm
  w/o feet/protrusions/screws: 415 x 210 x 451 mm
• Additional Features: See Overview
• Accessories: Accessory box
  User manual
  Ventilated top panel
• Package Weight: 10.0500 kg
• Warranty: 2 Years
