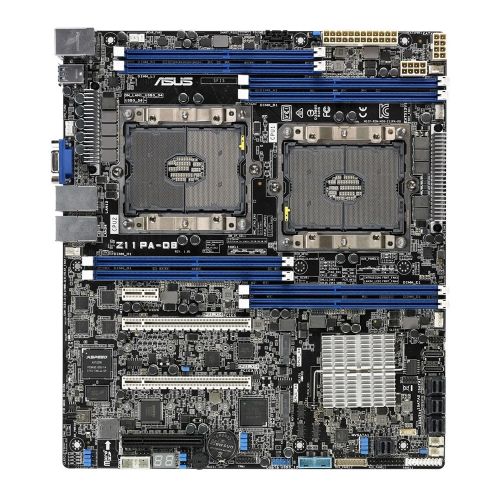

zero-2260-Asus Z11PA-D8 Xeon Server MB

Intel® Xeon® server motherboard with 8 DIMM slots

• Powerful performance with Intel® Xeon® Scalable processor and ECC memory
• Increased performance or data redundancy with dual M.2 SSDs in RAID mode
• High-speed storage interface support with dual OCuLink for NVMe
• Connect up to 16 SATA 6Gb/s storage devices
• Comprehensive IT infrastructure management software
• More flexible storage capability with SD card support
• Quick initialisation guidance for faster BIOS tracking enhancement

Introducing the ASUS Z11PA-D8 Xeon Server Motherboard The ASUS Z11PA-D8 Xeon Server Motherboard is an incredibly powerful and reliable server chassis that is designed with the professional in mind. This powerful system is the result of the combination of the latest Intel C621 chipset and an 8-core 3647 Xeon Scalable processor, giving the server a huge amount of memory and storage options. It also comes with dual OCuLink connectors for connecting NVMe SSDs, 8 DDR4 DIMMs and 4 integrated mini-SAS ports. The ASUS Z11PA-D8 Xeon Server Motherboard provides a great range of features with three PCIe slots, twelve SATA ports, and four M.2 slots. The four M.2 slots are designed to cover multiple data requirements, from storage to networking, giving you the flexibility to choose the best solution for your needs. It also includes an integrated Aspeed AST2500 graphics processor with 64MB of VRAM, allowing you to run 3D applications and games on the server. In addition to these features, the ASUS Z11PA-D8 Xeon Server Motherboard also comes with dual gigabit Ethernet ports, multiple USB 3.1 and USB 2.0 ports, and a wide range of other connectors and options. The rear panel also includes an integrated power switch, message LED, HDD LED, Location LED, BMC LED, and P5V LED. Finally, the ASUS Z11PA-D8 Xeon Server Motherboard comes with a 3 year warranty, extending the already impressive lifespan of this amazing server platform. With all of these features, the ASUS Z11PA-D8 Xeon Server Motherboard is ideal for those looking for the highest quality and performance from their server system. At a cost of £435.80, this is an excellent choice for those looking for a reliable and powerful server solution. With the combination of a powerful processor and fantastic features, the ASUS Z11PA-D8 Xeon Server Motherboard is the perfect solution.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: CEB
• Socket: Intel 3647
• Chipset: Intel C621
• #Hide#DDR Type: DDR4
• CPU Support: 2 x sockets

  Click here for CPU support
• RAM Technology: DDR4 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 2666/2400

  Note on capacity:
  Maximum up to 256GB RDIMM
  Maximum up to 512GB LRDIMM
  Maximum up to 1024GB LR-DIMM 3DS
• Maximum Memory: 1024GB
• Graphics: Aspeed AST2500 with 64MB VRAM
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: Total Slots: 3

  Location 1: PCIe x8
  Location 3: PCIe x16
  Location 5: PCIe x16
  Location 6: MIO Slot for Audio card
• Storage: 12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
  4 SATA3 6Gb/s port by 1miniSAS connector
  2 x M.2 (22110/2280/2260/2242) - SATA
• RAID: Dual M.2 SSDs in RAID
• Wireless: -
• LAN: Quad GB LAN & Mgmt LAN Port
• Audio: MIO Slot for Audio card
• USB Ports Supported: "6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
  2 x USB 2.0 (at mid-board)"
• Back Panel I/O Ports: 4 x USB 3.0
  1 x VGA
  4 x RJ-45 GbE LAN
  1 x RJ-45 Mgmt LAN

  Rear Switch/LED:
  1 x Power switch
  1 x Message LED
  1 x HDD LED
  1 x Location LED
  1 x BMC LED
  1 x P5V LED
• Internal I/O Connectors: 1 x TPM
  1 x PSU Power
  1 x USB 3.0 pin
  1 x USB 2.0 pin
  8 x Fan
  1 x Serial Port
  1 x SMBus
  1 x Chassis Intruder
  4 x Front LAN LED
  2 x M.2
  1 x VROC Key
  1 x Q-Code/Port 80 LED
• Accessories: I/O Shield
  1 x Supporting DVD
  2 x LGA3647 carrier
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 4 x LAN
• #Hide#Max LAN Speed: GB LAN
