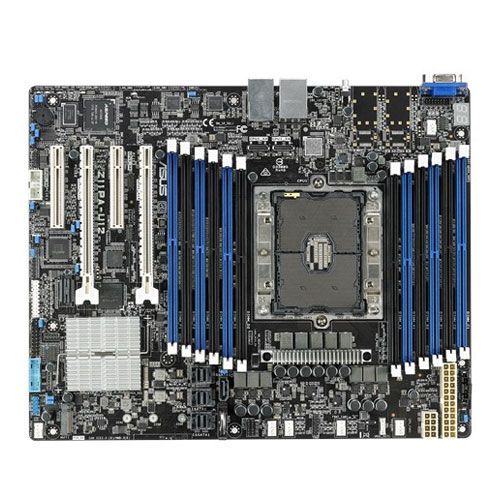

zero-2261-Asus Z11PA-U12 Scalable Xeon Server MB

Scalable server motherboard with 12 DIMM slots

• Intel® Xeon® Scalable processor platform
• Unmatched memory expandability with 12 DIMM slots
• Dual OCuLink for efficient connections to NVMe devices
• Support for up to 13 6Gb/s SATA storage devices
• Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Centre (ACC)
• Increased energy efficiency with ASUS ProCool Power Connectors

Introducing the ASUS Z11PA-U12 Scalable Xeon Server Motherboard The ASUS Z11PA-U12 is a powerful and reliable server motherboard designed with superior scalability and performance in mind. This motherboard has been crafted with ASUS' industry-leading technologies, high-quality components, and outstanding performance to make sure it meets the demands of today's modern businesses. The Z11PA-U12 is a 12-DDR4 ATX motherboard, designed with Intel C621 chipset and 3647 socket. This highly versatile server-grade motherboard can handle up to 1536GB of RAM, comprised from both DDR4 RDIMMs and LRDIMMs, as well as 2666/2400 LR-DIMM 3DS memory speeds. This board is designed with dual Gigabit LAN ports, dual OCuLink for NVMe, 1 PCI-E x16, 1 PCI-E x8, 13 SATA-3 ports, 4 USB 3.1 ports, and 2 USB 2.0 ports. A VGA port, TPM header, and Serial port are also included. The Z11PA-U12 also comes with an integrated Aspeed AST2500 graphics chip with 64MB of VRAM, as well as USB 3.1, RAID 0/1/5/10, and support for multiple GPUs (not included). It also comes with an I/O shield, SATA 6Gb/s cables, a LGA3647 carrier, and a DVD driver. ASUS' Z11PA-U12 Scalable Xeon Server Motherboard is a powerful and reliable offering that can provide optimal performance and scalability for a variety of businesses. With its advanced features and top-notch components, you can rest assured knowing that you will be getting the most out of your money. This motherboard currently retails for £357.37.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: ATX
• Socket: Intel 3647
• Chipset: Intel C621
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Six Channel)
• RAM Slots: 12 x DIMM
• RAM Speeds: 2666/2400 LR-DIMM 3DS

  Note on capacity:
  Maximum up to 384GB RDIMM
  Maximum up to 768GB LRDIMM
  Maximum up to 1536GB LR-DIMM 3DS
• Maximum Memory: 1536GB
• Graphics: Aspeed AST2500 with 64MB VRAM
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: "Total Slots: 4

  Location 1: PCIe x8 (Gen3 X4 Link)
  Location 2: PCIe x16 (Gen3 X16 Link)
  Location 3: PCIe x8 (Gen3 X8 Link)
  Location 4: PCIe x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied"
• Storage: 13 x SATA3 6Gb/s ports (12 by 3 mini-SAS Connector)
  1 x M.2 (2280/2260/2242) - SATa & PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: Dual GB LAN & Mgmt LAN Port
• USB Ports Supported: "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
  2 x USB 2.0 (at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.0
  1 x VGA
  2 x RJ-45 GbE LAN
  1 x RJ-45 Mgmt LAN

  Rear Switch/LED:
  1 x Power switch
  1 x Message LED
  1 x HDD LED
  1 x Location LED
  1 x BMC LED
  1 x P5V LED
• Internal I/O Connectors: 1 x TPM
  1 x PSU Power
  1 x USB 3.0 pin
  1 x USB 2.0 pin
  6 x Fan
  1 x Serial Port
  1 x SMBus
  1 x Chassis Intruder
  2 x Front LAN LED
  1 x M.2
  1 x VROC Key
  1 x Q-Code/Port 80 LED
• Accessories: I/O Shield
  1 x SATA 6Gb/s cable
  1 x Supporting DVD
  1 x LGA3647 carrier
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
